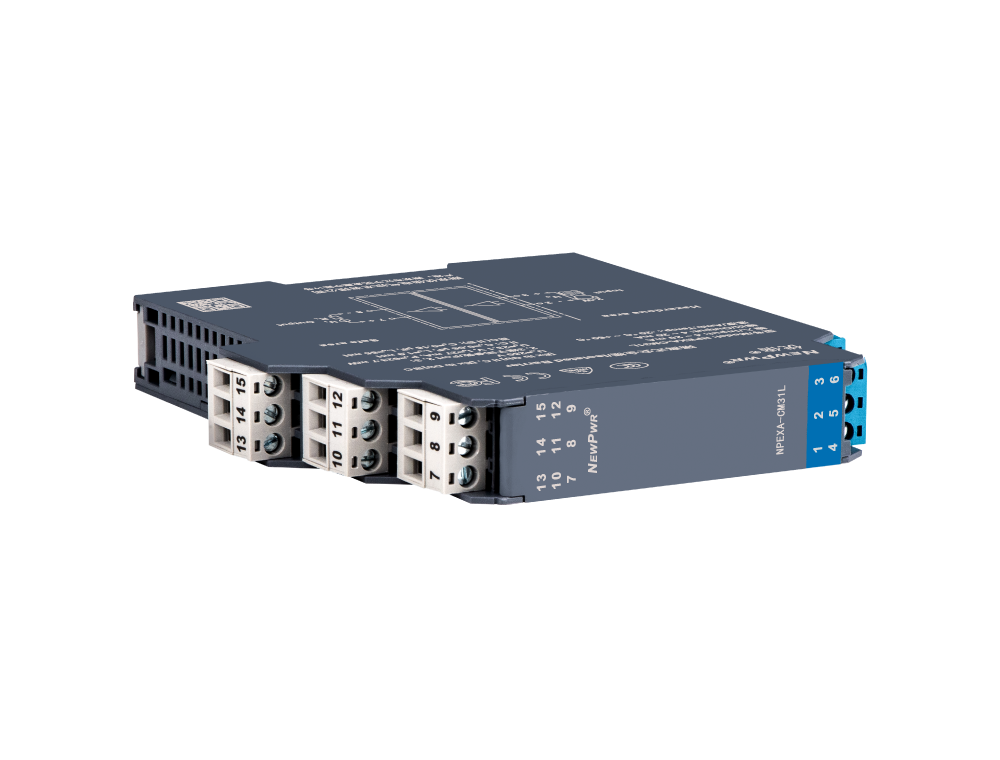

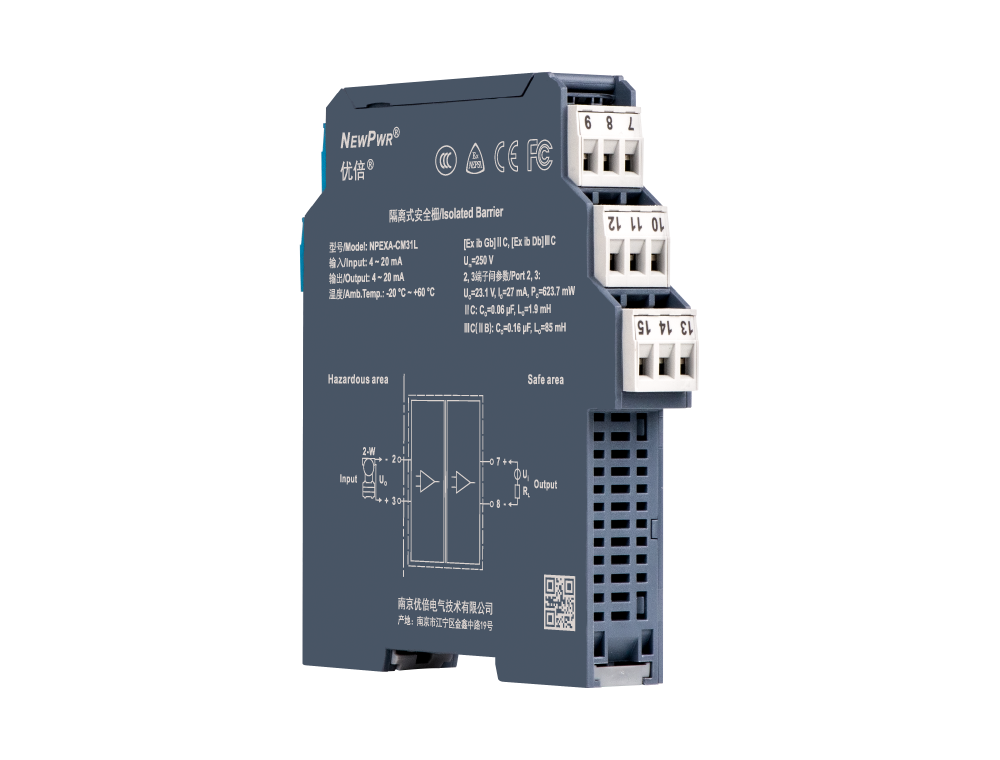

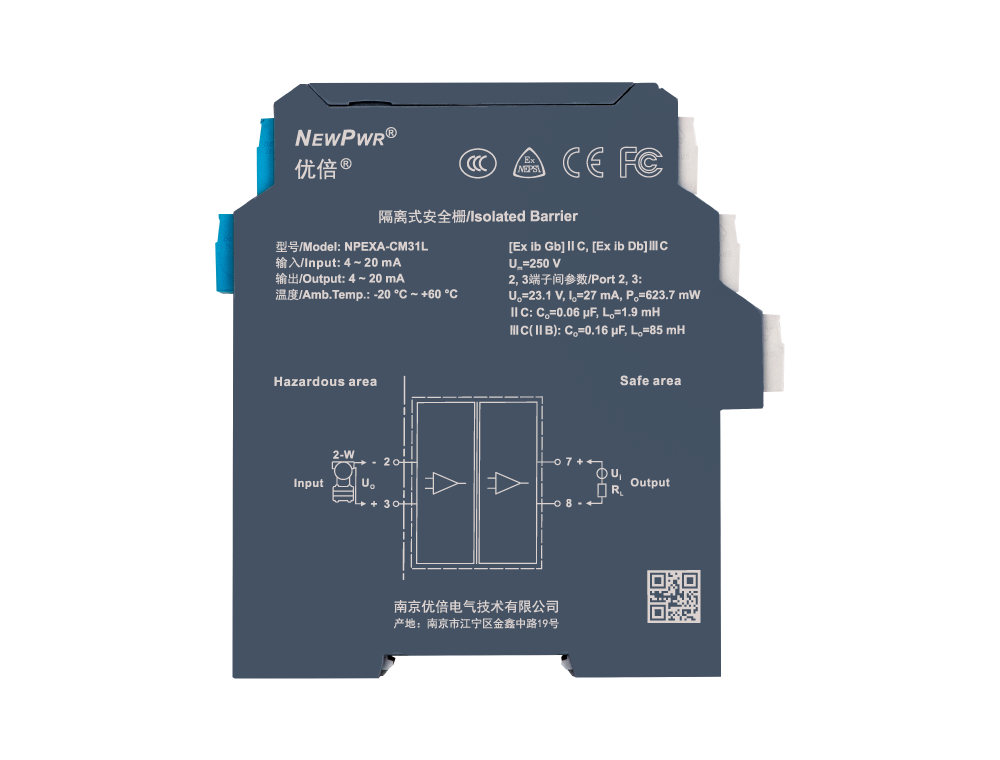

NPEXA-CM31L
【Core technology】
【Installation and disposal】
Installation Disposal
| Loop Powered | 18 ~ 30 V DC |
| Input signal | 4 ~ 20mA, HART |
| Available voltage | (U-6-RL×I)V, U≤ 24V; (18-RL×I)V, U> 24V; U is loop powered voltage |
| Output signal | 4 ~ 20mA, HART |
| Accuracy | 0.4 %F.S. |
| Temperature drift | 0.01%F.S./℃ |
| Response time | ≤ 2 ms |
| Electromagnetic compatibility | IEC 61326-3-1 |
| Dielectric strength | ≥ 2500V AC (intrinsically safe side /non-intrinsically safe side) |
| Insulation resistance | ≥ 100 MΩ (Input /Output) |
| Operation temperature | -20 ℃ ~ +60 ℃ |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Suitable location | Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 1, zone 2, ⅡA, ⅡB, ⅡC ，ⅢC, T4 ~ T6 |
| Connection method | Screw connection |
| Dimension | 17.8mm (W) × 110mm (H) × 117mm (D) |
| Mounting type | DIN35 mm |
| Product approvals | NEPSI, CE, FCC, CCS |
| Ex marking | [Ex ib Gb]ⅡC, [Ex ib Db] ⅢC |
| Um | 250 V |
| Uo | 23.1 V (Terminals 2, 3) |
| Io | 27 mA (Terminals 2, 3) |
| Po | 623.7 mW (Terminals 2, 3) |
| Co (?C) | 0.06 μF (Terminals 2, 3) |
| Lo (?C) | 1.9 mH (Terminals 2, 3) |
